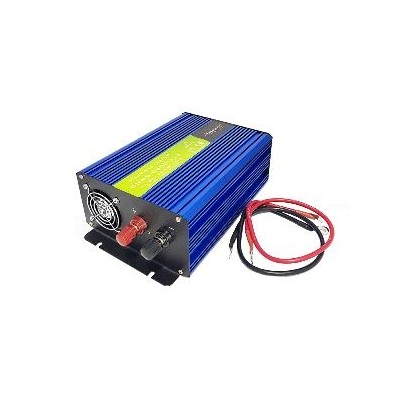

5000W 48V DC to 220V AC pure sine wave inverter.

This inverter operates with a 48V DC voltage compatible with SOLISE lithium batteries. It transforms 48V DC (direct current) into 220V AC (alternating current).

TECHNICAL SPECIFICATIONS

Input voltage : 10V to 15V DC
Output voltage : 220VAC +/-3%
Power rating : 5 000W
Peak power : 10 000W <3sec.
Efficiency : >85% max
Waveform : pure sine
Frequency : 50Hz or 60Hz
Operating temperature : -20°C to 45°C
Dimensions : 390(L)x216(W)x160(H)mm
Weight : 11.3kg

STANDARDS

Certifications : RoHS I CE

Warranty - 2 years

Solise
OND48-5000

RECOMMENDATIONS FOR USING SOLISE INVERTERS

To guarantee optimum performance, security and a long service life for your SOLISE inverters, we recommend that you follow these recommendations :

INSTALLATION

  • Install the SOLISE inverter in a dry place, protected from humidity
  • Avoid exposure to splashing water or damp environments

TEMPERATURE

  • Do not expose the inverter to temperature below 0°C or above 40°C
  • Keep the inverter away from sources of heat and flames

SPACING AND VENTILATION

  • Leave sufficient space around the inverter to allow adequate ventilation
  • Avoid placing heat-sensitive objects near the inverter

CONNECTION

  • Under no circumstances should the inverter be connected to household AC distribution wiring.

MAINTENANCE AND USE

  • Check the inverter regularly for signs of damage or malfunction
  • Follow the instructions in the user manual for any maintenance or troubleshooting operation

By observing these precautions, you will contribute to the longevity and efficiency of your SOLISE inverter.
