Support batterie de démarrage voiture de collection
Dimensions : 174.80(L)x174.70(W)x98(H)mm or 156.76(H)mm with locking tab.

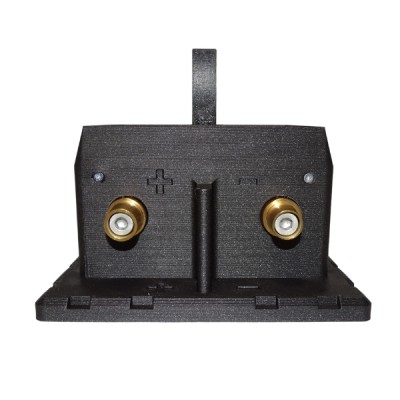

Lithium starter battery holder for classic cars, custom-made by 3D printing.
This stand has been specially designed to hold the SOLISE battery ref.BV1210D, a practical and versatile solution. Designed for a removable battery, this base remains attached to the car, allowing you to use a single battery for all your classic vehicles.
Installation is quick and easy: just place the cradle where the old battery used to be and fix it in place using the claws provided. No additional modifications are required.
Thanks to the plug & play system, the SOLISE lithium battery (reference BV1210D) can be fitted directly into the cradle in a single movement. So it's easy to plug in and remove without the need for a connector. The locking system with the tab at the rear prevents the battery from being removed while driving.
TECHNICAL SPECIFICATIONS
Dimensions : 174.80(L)x174.70(W)x98(H)mm or 156.76(H)mm with locking tab.
RECOMMENDATIONS FOR USING LITHIUM SOLISE BATTERIES
To ensure optimal, safe performance and long life for your SOLISE lithium batteries, we recommend that you follow these guidelines :
USE AND RECHARGING
- Suitable charger : Use a charger specifically designed for lithium batteries to optimize recharging.
- Disconnection : Disconnect your battery if you are not going to use it for more than 2 weeks, to avoid deep discharge.
- Prolonged inactivity : If you've never used your battery after purchasing it, you'll need to recharge it after 18 months.
- Quality connection : Make sure the battery connection is of good quality to avoid any operating problems.
STORAGE
- Wintering : If you're using your battery and want to store it for the winter, you'll need to fully recharge it. You can then store it for up to 18 months without risk.
PROTECTION AND SAFETY
- Exposure to water : Protect the battery from splashing water and damp environments to avoid the risk of short-circuiting and corrosion.
- Short circuit : Do not short-circuit, as this may cause irreversible damage and a fire hazard.
- Exposure to flames : Do not expose the battery to flames.
- Protective casing : Do not remove the plastic protective casing, which provides electrical insulation and mechanical protection.
CHARGING CONDITION
- Temperature : Do not recharge the battery at temperatures below 0°C or above 60°C. To prevent overheating, avoid placing the battery too close to the engine.
- Recharging voltage : Your alternator must not recharge the battery at a voltage higher than 14.6V.
- Discharging : Do not discharge the battery below 9V.
These batteries have no protection against overcharge, deep discharge or short-circuit.
We strongly recommend the addition of our balancing card (part no. ACC009), which balances the cells during charging, thus extending battery life. Once installed, the balancing board must not be disconnected.
THE CONSEQUENCES OF MISUSE
- Loss of technical characteristics : If these recommendations are not followed, the battery may lose its technical characteristics irreversibly and will not be covered by warranty.
- Fire hazard : If misused, the battery can catch fire.
RECYCLING USED BATTERIES
These products must not be thrown away. SOLISE works with the Screlec organisation to take care of used batteries. You can return them to your local waste collection centre for proper recycling.
