48V 25Ah NMC lithium battery kit
Max. discharge current : 30A
Dimensions : 275(L)x75(W)x185(H)mm
Weight : 7kg

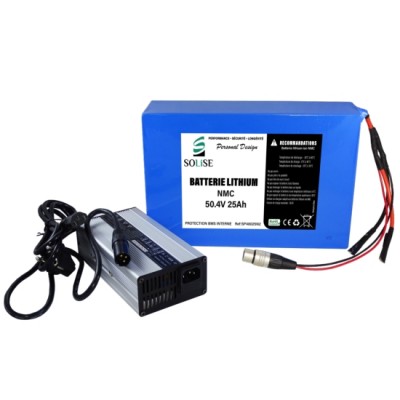

Lithium Nickel Manganese Cobalt (NMC) 48V 25Ah battery with integrated BMS protection system - 4A charger included.
Our range of lithium batteries for scooters has been designed to replace lead, gel or AGM batteries easily and without modification. Our batteries are high-performance, compact, lightweight and require no active maintenance to extend their life.
Our lithium batteries are easy to install and adaptable to a wide range of applications. Thanks to their low discharge rate (<3% per month), they can be stored for long periods without losing their performance.
TECHNICAL SPECIFICATIONS
Nominal voltage : 50.4V
Capacity : 25Ah
Energy : 1 260Wh
Charging voltage : 58.8V
Fast load current: 12A
Continuous discharge current : 30A
Pulse discharge current : 40A (3s)
Operating temperature : -20°C to 60°C
Charging temperature : 0°C to 45°C
Service life : 1 000 cycles
Dimensions : 275(L)x75(W)x185(H)mm
Weight : 7kg
Connections are made using 2 wires 200mm long and an XLR connector.
BMS PROTECTION
- Overload protection 80 +/- 20A
- Protection against deep voltage discharges <30V
- Protection against short-circuits
- Load cell balancing
CHARGER INCLUDED
The indicator light is green when the charger is connected. As soon as the battery is connected, the indicator turns red and returns to green when the battery is charged.
Supply voltage : 100V to 240V AC
Charging voltage : 58.8V
Charging current : 4A
Charging time : 6h30
STANDARDS
Certifications : RoHS I CE I UN38.3
Warranty - 2 years
RECOMMENDATIONS FOR USING LITHIUM SOLISE BATTERIES
To ensure optimal, safe performance and long life for your SOLISE lithium batteries, we recommend that you follow these guidelines :
USE AND RECHARGING
- Suitable charger : Use a charger specifically designed for lithium batteries to optimize recharging.
- Prolonged storage : In the event of prolonged storage, recharge after 18 months.
- Complete discharge : If the battery is completely discharged until the BMS (Battery Management System) switches off, it is crucial to recharge it within 24 hours.
- Quality connection : Make sure the battery connection is of good quality to avoid any operating problems.
PRECAUTIONS FOR USE
- Do not open : Do not attempt to open the battery.
- Do not immerse : Do not immerse the battery in liquid.
- Do not expose to flames : Keep the battery away from sources of ignition.
- Discharge current : Do not exceed the recommended continuous discharge current.
- Recharging temperature : Do not recharge the battery at a temperature below 0°C.
- Exposure temperature : Do not leave the battery exposed to temperatures above 60°C.
RECYCLING USED BATTERIES
These products must not be thrown in the bin. SOLISE works with the Screclec organisation to take care of used batteries. You can return them to the waste collection centres so that they can be recycled appropriately.
