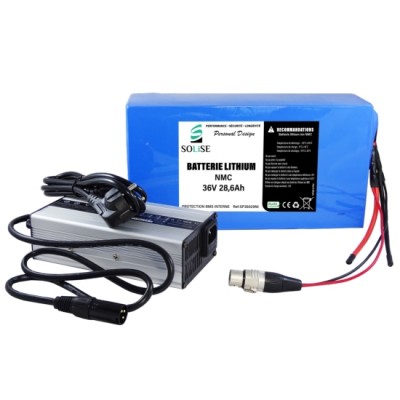

Kit batterie lithium 36V 29Ah NMC
Max. discharge current : 40A
Dimensions : 275(L)x85(W)x150(H)mm
Weight : 5.3kg
36V 29Ah Lithium Nickel Manganese Cobalt (NMC) battery with integrated BMS protection system - 5A charger included.
Our range of lithium batteries for scooters has been designed to replace lead, gel or AGM batteries easily and without modification. Our batteries are high-performance, compact, lightweight and require no active maintenance to extend their life.
Our lithium batteries are easy to install and adaptable to a wide range of applications. Thanks to their low discharge rate (<3% per month), they can be stored for long periods without losing their performance.
TECHNICAL SPECIFICATIONS
Nominal voltage : 36V
Capacity : 28.6Ah
Energy : 1 030Wh
Charging voltage : 42V
Fast charge current : 14A
Continuous discharge current : 40A
Pulse discharge current : 50A (3s)
Operating temperature : -20°C to 60°C
Charging temperature : 0°C to 45°C
Service life : 1 000 cycles
Dimensions : 275(L)x85(W)x150(H)mm
Weight : 5.3kg
Connections are made using 2 wires 200mm long and an XLR connector.
BMS PROTECTION
- Overload protection 80 +/- 20A
- Protection against deep voltage discharges <30V
- Protection against short-circuits
- Load cell balancing
CHARGER INCLUDED
The indicator light is green when the charger is connected. As soon as the battery is connected, the indicator light turns red and then green again when the battery is charged.
Supply voltage : 100V to 240V AC
Charging voltage : 42V
Charging current : 5A
Charging time : 6h
STANDARDS
Certifications : RoHS I CE I UN38.3
Warranty - 2 years
RECOMMENDATIONS FOR USING LITHIUM SOLISE BATTERIES
To ensure optimal, safe performance and long life for your SOLISE lithium batteries, we recommend that you follow these guidelines :
USE AND RECHARGING
- Suitable charger : Use a charger specifically designed for lithium batteries to optimize recharging.
- Prolonged storage : In the event of prolonged storage, recharge after 18 months.
- Complete discharge : If the battery is completely discharged until the BMS (Battery Management System) switches off, it is crucial to recharge it within 24 hours.
- Quality connection : Make sure the battery connection is of good quality to avoid any operating problems.
PRECAUTIONS FOR USE
- Do not open : Do not attempt to open the battery.
- Do not immerse : Do not immerse the battery in liquid.
- Do not expose to flames : Keep the battery away from sources of ignition.
- Discharge current : Do not exceed the recommended continuous discharge current.
- Recharging temperature : Do not recharge the battery at a temperature below 0°C.
- Exposure temperature : Do not leave the battery exposed to temperatures above 60°C.
RECYCLING USED BATTERIES
These products must not be thrown in the bin. SOLISE works with the Screclec organisation to take care of used batteries. You can return them to the waste collection centres so that they can be recycled appropriately.
