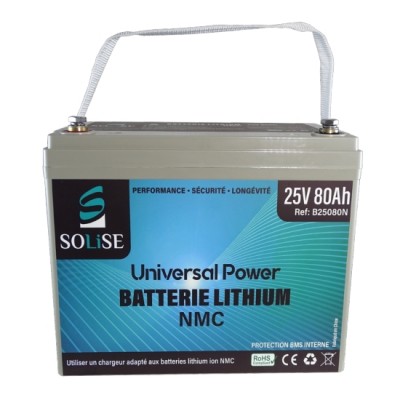

Batterie lithium 25V 80Ah NMC
Max. discharge current : 80A
Dimensions : 259(L)x168(W)x214(H)mm
Weight : 12.5kg
Lithium Nickel Manganese Cobalt (NMC) 25V 80Ah battery with integrated BMS protection system.
Our range of Universal Power lithium batteries has been designed to replace lead, gel or AGM batteries easily and without modification. Our batteries are high-performance, compact, lightweight and require no active maintenance to extend their life.
Our lithium batteries are easy to install and adaptable to a wide range of applications. Thanks to their low discharge rate (<3% per month), they can be stored for long periods without losing their performance.
TECHNICAL SPECIFICATIONS
Rated voltage : 25.2V
Capacity : 80Ah
Energy : 2 016Wh
Charging voltage : 29.4V
Standard charging current : 40A
Fast load current : 80A
Continuous discharge current : 80A
Pulse discharge current : 120A (3s)
Operating temperature : -20°C to 60°C
Charging temperature : 0°C to 45°C
Service life : 1 000 cycles
Dimensions : 259(L)x168(W)x214(H)mm
Weight : 12.5kg
The connection is made using 2 M6 screws (6mm diameter) on the top of the battery. The wires to be connected must have 6mm diameter round terminals.
BMS PROTECTION
Overload voltage : 29.4V
Minimum discharge voltage : 22V
This device provides short-circuit protection while balancing the cells during charging.
STANDARDS
Certifications : RoHS I CE I UN38.3
Warranty - 2 years
RECOMMENDATIONS FOR USING LITHIUM SOLISE BATTERIES
To ensure optimal, safe performance and long life for your SOLISE lithium batteries, we recommend that you follow these guidelines :
USE AND RECHARGING
- Suitable charger : Use a charger specifically designed for lithium batteries to optimize recharging.
- Prolonged storage : In the event of prolonged storage, recharge after 18 months.
- Complete discharge : If the battery is completely discharged until the BMS (Battery Management System) switches off, it is crucial to recharge it within 24 hours.
- Quality connection : Make sure the battery connection is of good quality to avoid any operating problems.
PRECAUTIONS FOR USE
- Do not open : Do not attempt to open the battery.
- Do not immerse : Do not immerse the battery in liquid.
- Do not expose to flames : Keep the battery away from sources of ignition.
- Discharge current : Do not exceed the recommended continuous discharge current.
- Recharging temperature : Do not recharge the battery at a temperature below 0°C.
- Exposure temperature : Do not leave the battery exposed to temperatures above 60°C.
RECYCLING USED BATTERIES
These products must not be thrown in the bin. SOLISE works with the Screclec organisation to take care of used batteries. You can return them to the waste collection centres so that they can be recycled appropriately.
